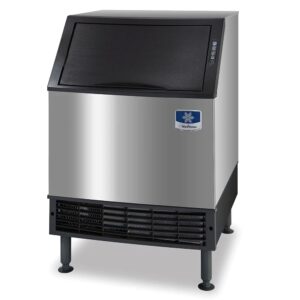

xManitowoc Ice UYF0140A 26"W Half Cube NEO Undercounter Ice Machine - 137 lbs/day, Air Cooled
The Manitowoc UYF-0140A Neo® undercounter ice maker produces half-dice ice that measures 3⁄8 inch by 11⁄8 inch by 7⁄8 inch. In a 24-hour period, the unit makes 137 pounds of half-dice ice if the ambient temperature is 70 degrees Fahrenheit. The delay function allows operators to pause ice production during closed or slow business hours. The storage bin holds up to 90 pounds, and an ergonomic scoop is included to prevent ice from being contaminated by bare hand contact.
Installation and maintenance are simple since the air-cooled condenser is self-contained, and servicing the Manitowoc UYF-0140A Neo undercounter ice maker is easy thanks to the accessible refrigeration components. The plastic food zone has a removable damper door, water trough, and distribution tube so they can be quickly cleaned. The feedback program uses indicator lights to let operators know about full bin conditions and service needs.
Product Details
- 137-lb. maximum daily ice production
- 100-lb. AHRI-certified daily ice production
- Half-dice ice size: 3⁄8 in. x 11⁄8 in. x 7⁄8 in.
- Full bin and service indicators provide convenient feedback
- Delay function pauses ice production for slow periods
- Easy installation and maintenance thanks to the air-cooled condensing unit
- Refrigeration components are accessible for quick service
- Smooth, sealed food zone has a removable distribution tube, damper door, and water trough for simple cleanup
- AlphaSan® antimicrobial protection on the integral components slows bacteria growth
- 90-lb. storage bin capacity
- Ergonomically designed plastic scoop is included
- 2,150 BTU of heat transfer capacity
- 3-year; 5-year Compressor Parts
Dimensions & Utilities
- 26 in. W x 281⁄2 in. D x 381⁄2 in. H
- 5 A, 0.42 HP, 9.2 kW
- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
Product Features
*Free shipping on Manitowoc Ice UYF0140A within the 48 contiguous states.
From The Manufacturer
NEO® Undercounter Ice Maker, cube-style, air-cooled, self contained, 26"W x 28"D x 38-1/2"H, production capacity up to 137 lb/24 hours at 70°/50° (100 lb AHRI certified at 90°70°), 90 lb ice storage capacity, electronic controls, half dice size cubes, 6" adjustable legs with flanged feet (painted gray), 0.42 HP, NSF, cULus, CE, 115v/60/1ph
*Image may not depict product color, inclusions or accessories.
Additional Product Information
This product includes a cord and plug
This unit produces half-cube ice excellent for soft drinks, blended drinks, ice dispensing, and bagging.
Also called self-contained, this compressor type uses air for cooling
This unit has a removable air filter for easy maintenance
Manitowoc Ice UYF0140A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 137 |
| Also Known As | UY-0140A |
| Bin Capacity (lb) | 90 |
| Compressor Type | Air Cooled |
| Depth (in) | 28.5 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 38.5 |
| Hertz | 60 |
| Ice Type | Half Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | NEO® |
| Special Features | Antimicrobial |
| Special Features | Digital Controls |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year; 5-year Compressor Parts |
| Width (in) | 26 |
| Weight | 153.00 |
